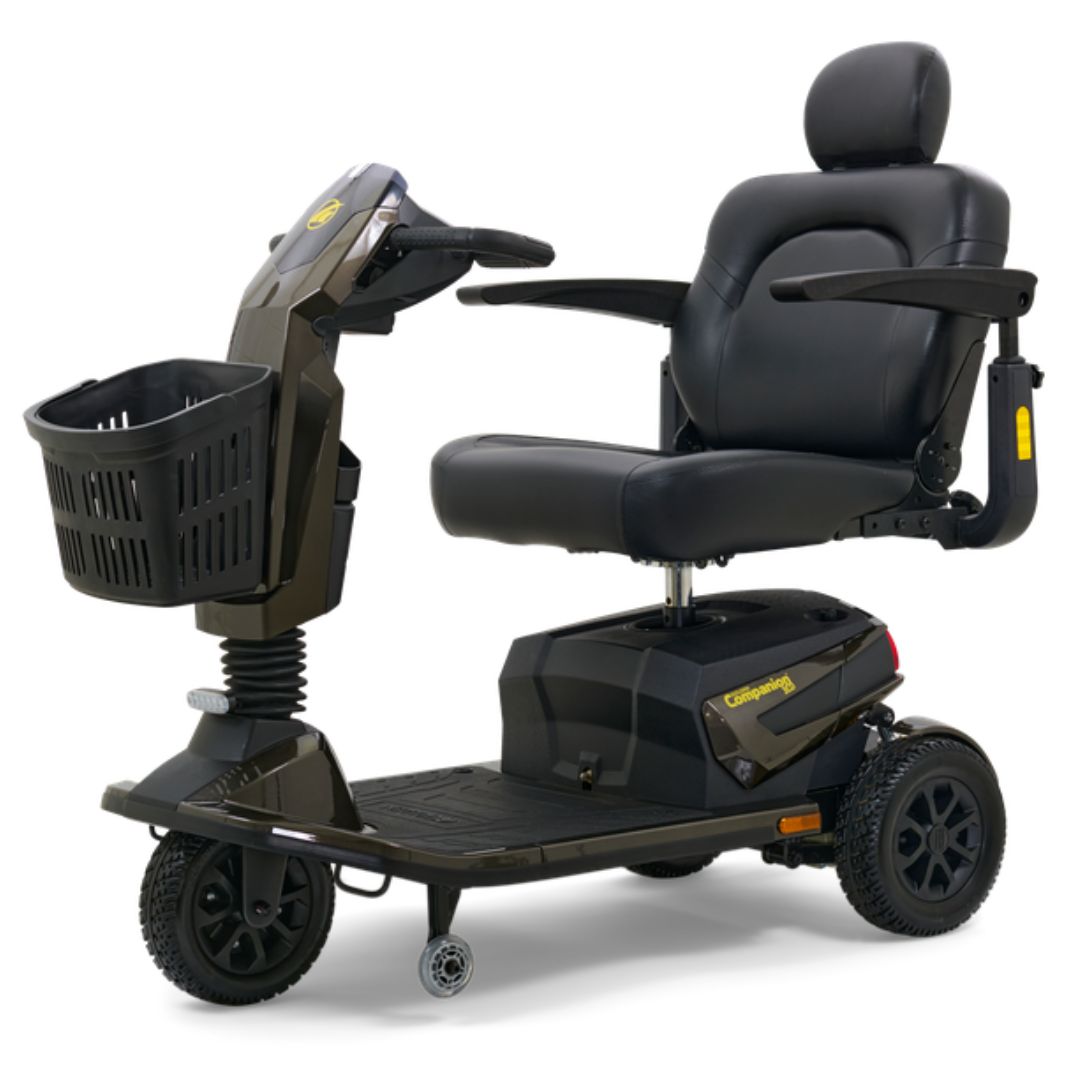

Companion HD 3W Scooter GC540

The new Golden Companion Heavy-Duty 3-wheel scooter combines a
modern design with high performance features to offer the ultimate indoor or
outdoor driving experience at a weight capacity of 500 lbs. The Companion
HD’s rugged construction is built for stability and maneuverability with front
anti-tip wheels, a 51” turning radius. It offers rear suspension for a smooth
ride, and a powerful 120 Amp controller for outstanding climbing ability. It
features front and rear LED lighting, an adjustable tiller with auto-lock, and a
luxury high-back Captain’s seat for maximum comfort when on the go, plus
durable vibrant red, blue or grey color shrouds for a sporty look. With solid,
non-marking tires, an operating range of 16 miles on 2-NF22 batteries, and a
maximum speed of 6 mph, the Companion HD offers everything you need to
enjoy the great outdoors.

Model GC540
Medicare Code K0808
Weight Capacity 500 lbs
Drive Wheels Rear
Maximum Speed 6 mph
Operating Range1 16 miles
Ground Clearance to Center Deck 6.25”
Ground Clearance to Transaxle/Motor 3.75”
Turning Radius 51”
Type Batteries / Air Travel Safe 2-NF22 / Yes
Colors Grey, Red, Blue
Freewheel Mode Yes
Electronic Speed Control Yes
Electro-Mechanical Brakes Yes
Energy Efficient Auto Turn Off (Sleep Mode)     Yes
Charger Portable 8 Amp Off Board
Controller 120 Amp
Dimensions:
 Length 48”
 Width 26”
 Ground to Top of Seat 24.5” - 27.5”
 Ground to Top of Deck 8”
 Deck to Top of Seat 16.5” - 19.5”
Number of Seat Height Positions 4
 Size of Increments 1”
 Front Axle to Rear Axle 36”
Weight of Unit: (assembled) 225.5 lbs
Tires: Flat Free / Non Marking Solid
 Front 10.25”
 Rear 10.75”
 Front & Rear Anti-Tippers Yes
Standard Seat: Extra Wide High Back
 Back Height (no headrest)     18”
 Width x Depth 22” x 20”
 Color Black
 Transportation Seat Lock Yes, Self Locking
 Seat Rotation 90 Degree either direction 360 Degrees
Optional Seat: Captain's Chair
 Back Height - no headrest 18”
 Width x Depth 20” x 20”
 Color Black
 Power Elevating Seat - 6” with Lockout Yes
